Locomotive E 1090 van the Miljoenenlijn - Zuid Limburgse Stoomtrein Maatschappij (ZLSM)

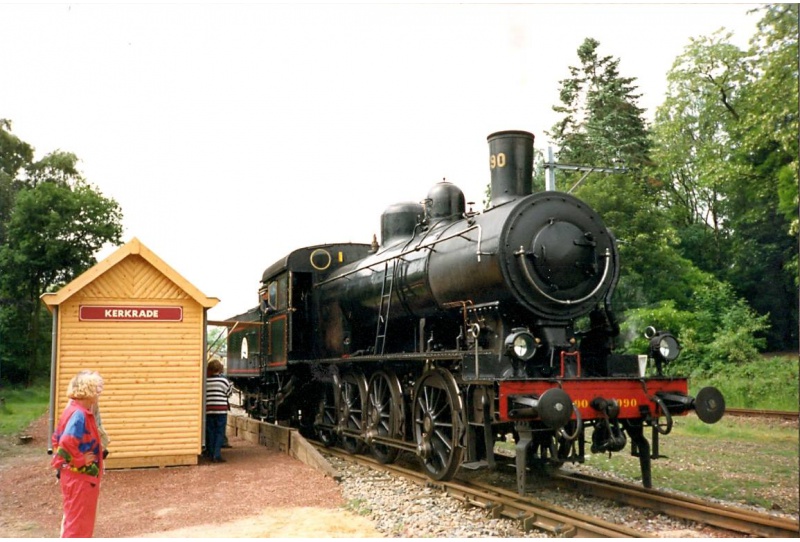

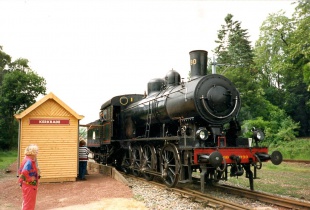

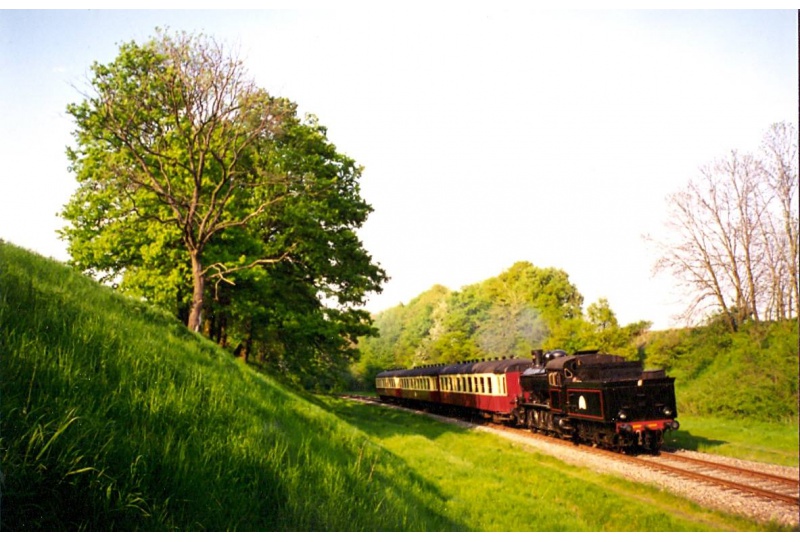

E 1090 in Kerkrade, 7. Mai 1995 ©Dan v. d. Poel
_ZLSM.jpg)
| Traction | Steam |
|---|---|
| Manufacturer | Nydqvist & Holm |
| Type | type E |
| Works number | 966 |
| Year build | 1911 |
| Gauge | 1435 mm |
| Location | Simpelveld |
| Ready for service? | nee |
| Weight | 50 ton |
| Total length | 16,65 m |
| Classification | D |
| Max. speed | 65 / 45 km/h |
| Traction details | Binnen liggende Cilinders en drijfwerk. Schaarbeweging volgens Walschaert |
| Orig. owners | Statens Järnvägar, Zweden |
| Historical numbers | E 1090 |
History:
The E-type is built for light passenger and cargotrains. Between 1908 and 1920 some 130 pieces are built.
The E-types came into service with an open drivers cabine and gas lighting. After 1927 all E-types are modified with closed cabs and for many engines the lighting is changed to an electric system.
Our E 1090 still has the original gas lighting.
Some E-types, of which our E 1090, have been equiped with new welded boilers in the 50's. The E-types have been in service at SJ until 1972, after which they were stored for strategic military reserve.
Starting 1992 this military reserve was dismantled and ZLSM was given the opportunity to buy the E 1090 in 1994
E 1090 went into service at ZLSM in 1995 and was the first steamlocomotive in service for ZLSM.

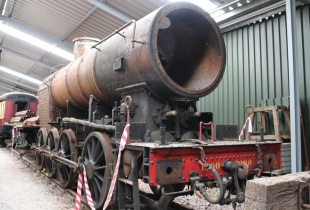

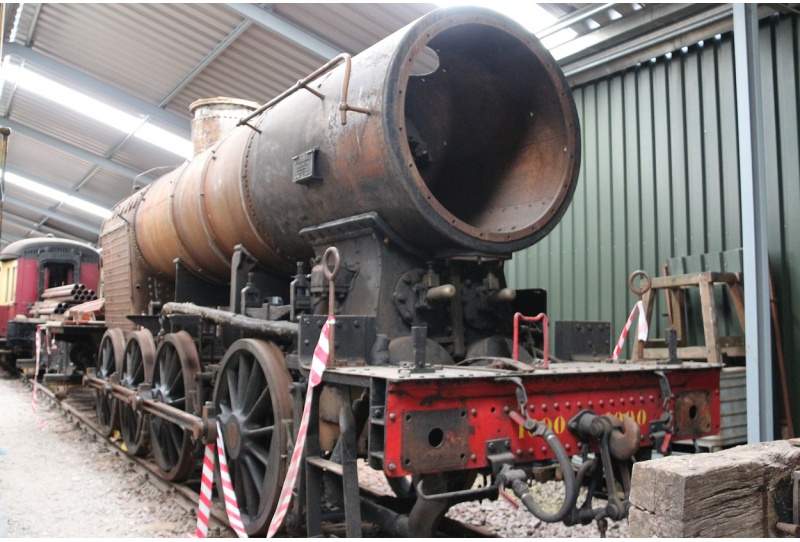

In 1999 went the engine out of service with boiler problems. During the revision was a heavy damage on the frame found. A complete revision was financial and temporal not longer an option.
An optic restauration is in planning.
